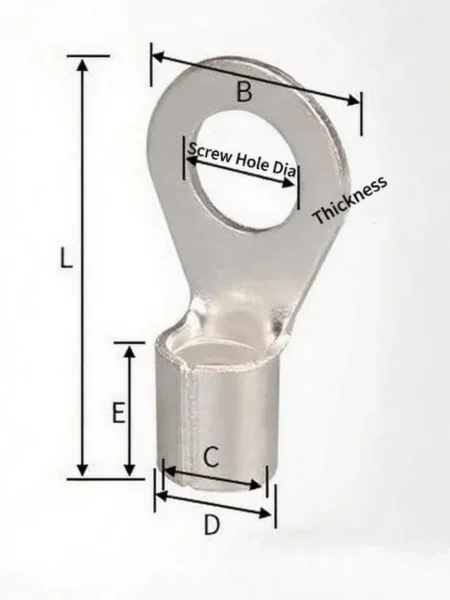

| OT Type Wire Connector Terminal Specification |
| Model(Brass Tin-Plated) | C(mm) | D(mm) | E(mm) | L(mm) | B(mm) | Screw Hole Dia(mm) | Thickness(mm) |
| OT0.5-3 | 1.2 | 2 | 4.5 | 13 | 6 | 3 | 0.3 |
| OT0.5-4 | 1.2 | 2 | 4.5 | 14.2 | 7 | 4 | 0.3 |
| OT1-3 | 1.8 | 3 | 5 | 14 | 6 | 3 | 0.5 |
| OT1-4 | 1.8 | 3 | 5 | 15.5 | 7.5 | 4 | 0.5 |
| OT1-5 | 1.8 | 3 | 5 | 19 | 9.5 | 5 | 0.5 |
| OT1-6 | 1.8 | 3 | 5 | 20 | 10.5 | 6 | 0.5 |
| OT1.5-3 | 2 | 3.3 | 5 | 14 | 6 | 3 | 0.5 |
| OT1.5-4 | 2 | 3.3 | 5 | 15.8 | 7.5 | 4 | 0.5 |
| OT1.5-5 | 2 | 3.3 | 5 | 18.2 | 9.2 | 5 | 0.5 |
| OT1.5-6 | 2 | 3.3 | 5 | 19.2 | 10.6 | 6 | 0.5 |
| OT1.5-8 | 2 | 3.3 | 5 | 23.2 | 13.2 | 8 | 0.5 |
| OT1.5-10 | 2 | 3.3 | 5 | 27 | 15 | 10 | 0.5 |
| OT2.5-3 | 2.9 | 3.9 | 5 | 14.5 | 6.2 | 3 | 0.5 |
| OT2.5-4 | 2.9 | 3.9 | 5 | 15.7 | 7.4 | 4 | 0.5 |
| OT2.5-5 | 2.9 | 3.9 | 5 | 18.4 | 9.3 | 5 | 0.5 |
| OT2.5-6 | 2.9 | 3.9 | 5 | 19.6 | 10.7 | 6 | 0.5 |
| OT2.5-8 | 2.9 | 3.9 | 5 | 23.5 | 13.3 | 8 | 0.5 |
| OT2.5-10 | 2.9 | 3.9 | 5 | 25.8 | 15.3 | 10 | 0.5 |
| OT2.5-12 | 2.9 | 3.9 | 5 | 30 | 18.5 | 12 | 0.5 |
| OT2.5-14 | 2.9 | 3.9 | 5 | 33.9 | 22.9 | 14 | 0.5 |
| OT2.5-16 | 2.9 | 3.9 | 5 | 36.9 | 23 | 16 | 0.5 |
| OT4-4 | 3.6 | 4.8 | 6.2 | 19 | 8.1 | 4 | 0.6 |
| OT4-5 | 3.6 | 4.8 | 6.2 | 19.3 | 9 | 5 | 0.6 |
| OT4-6 | 3.6 | 4.8 | 6.2 | 22.5 | 11.1 | 6 | 0.6 |
| OT4-8 | 3.6 | 4.8 | 6.2 | 25.6 | 13.4 | 8 | 0.6 |
| OT4-10 | 3.6 | 4.8 | 6.2 | 29.7 | 17.6 | 10 | 0.6 |
| OT4-12 | 3.6 | 4.8 | 6.2 | 32 | 18.5 | 12 | 0.6 |
| OT4-14 | 3.6 | 4.8 | 6.2 | 31.6 | 21.5 | 14 | 0.6 |
| OT4-16 | 3.6 | 4.8 | 6.2 | 31.6 | 21.5 | 16 | 0.6 |
| OT4-18 | 3.6 | 4.8 | 6.2 | 36.3 | 26 | 18 | 0.6 |
| OT4-20 | 3.6 | 4.8 | 6.2 | 39.3 | 27 | 20 | 0.6 |
| OT6-4 | 4.4 | 5.8 | 7.2 | 18.8 | 8.6 | 4 | 0.7 |
| OT6-5 | 4.4 | 5.8 | 7.2 | 20.3 | 9.2 | 5 | 0.7 |
| OT6-6 | 4.4 | 5.8 | 7.2 | 23.4 | 11.2 | 6 | 0.7 |
| OT6-8 | 4.4 | 5.8 | 7.2 | 25.8 | 14.1 | 8 | 0.7 |
| OT6-10 | 4.4 | 5.8 | 7.2 | 29.7 | 17.2 | 10 | 0.7 |
| OT6-12 | 4.4 | 5.8 | 7.2 | 30.5 | 18.4 | 12 | 0.7 |
| OT6-14 | 4.4 | 5.8 | 7.2 | 32 | 20.2 | 14 | 0.7 |
| OT6-16 | 4.4 | 5.8 | 7.2 | 38.7 | 24.8 | 16 | 0.7 |
| OT6-18 | 4.4 | 5.8 | 7.2 | 39.7 | 24.8 | 18 | 0.7 |
| OT6-20 | 4.4 | 5.8 | 7.2 | 40.5 | 27.2 | 20 | 0.7 |
| OT6-22 | 4.4 | 5.8 | 7.2 | 43.6 | 31.6 | 22 | 0.7 |
| OT6-24 | 4.4 | 5.8 | 7.2 | 43.7 | 31.6 | 24 | 0.7 |
| OT6-26 | 4.4 | 5.8 | 7.2 | 47.7 | 36.1 | 26 | 0.7 |
| OT6-28 | 4.4 | 5.8 | 7.2 | 47.7 | 36.4 | 28 | 0.7 |
| OT6-30 | 4.4 | 5.8 | 7.2 | 57.8 | 41 | 30 | 0.7 |
| OT10-4 | 5.5 | 7.4 | 8.8 | 25.5 | 11.5 | 4 | 1 |
| OT10-5 | 5.5 | 7.4 | 8.8 | 25.5 | 11.5 | 5 | 1 |
| OT10-6 | 5.5 | 7.4 | 8.8 | 25.5 | 11.5 | 6 | 1 |
| OT10-8 | 5.5 | 7.4 | 8.8 | 29 | 15.5 | 8 | 1 |
| OT10-10 | 5.5 | 7.4 | 8.8 | 30.3 | 17 | 10 | 1 |
| OT10-12 | 5.5 | 7.4 | 8.8 | 32.2 | 18.8 | 12 | 1 |
| OT10-14 | 5.5 | 7.4 | 8.8 | 35 | 21.1 | 14 | 1 |
| OT10-16 | 5.5 | 7.4 | 8.8 | 39.1 | 23.4 | 16 | 1 |
| OT10-18 | 5.5 | 7.4 | 8.8 | 40.6 | 28 | 18 | 1 |
| OT10-20 | 5.5 | 7.4 | 8.8 | 41.2 | 28 | 20 | 1 |
| OT10-22 | 5.5 | 7.4 | 8.8 | 47 | 33.1 | 22 | 1 |
| OT10-24 | 5.5 | 7.4 | 8.8 | 47 | 33.1 | 24 | 1 |
